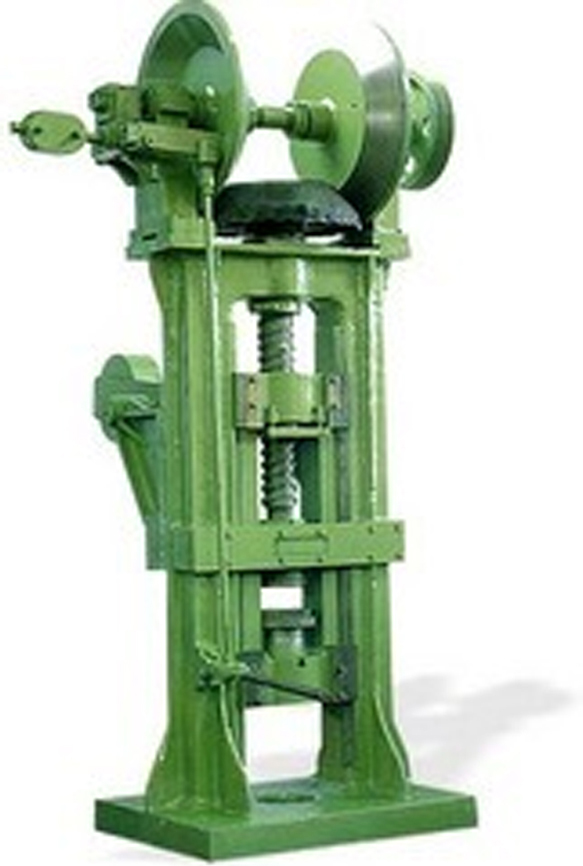

Forging Screw Presses
Our FORGING SCREW PRESSES thread rolling machines allow the production of large and small batches of all kinds of threads that can be cold formed, in the most economical way. The normal basic data stated in the table for each machine type are not limiting values. Practical tests in the areas of manufacturing techniques and material behavior extend performance limits of our machines further and further.
Our developments are being determined by and over increasing and move accurate knowledge which enable us to conceive tailor made designs for SPECIALS APPLICATIONS, MATERIAL SPECIALTIES, SPECIFIC DIMENSIONS & DIE-SHAPES.
| Type No. | Nominal capacity | Dia of screw mm/inch | Stroke mm/inch | Max Dia of bolt capable forging mm/inch | Max Dia of Length capable forging mm/inch | Pieces / Hour | Power required H.P./R.P.M. |
|---|---|---|---|---|---|---|---|
| 1 | 50 | 85/3¼ | 300/12 | 12/½ | 250/10 | 800 - 1200 | 3/1440 |
| 2 | 100 | 110/4¼ | 400/16 | 20/¾ | 300/12 | 600 - 1000 | 7.5/1440 |
| 3 | 150 | 130/5⅛ | 500/20 | 32/1¼ | 450/18 | 400 - 700 | 15/1440 |
| 4 | 200 | 135/5⅜ | 550/22 | 38/1½ | 500/20 | 300 - 600 | 20/1440 |
| 5 | 300 | 155/6⅛ | 600/24 | 50/2 | 600/24 | 200 - 500 | 25/1440 |
| 6 | 400 | 175/7 | 650/26 | 63/2 | 650/26 | 150 - 300 | 30/1440 |
| 7 | 500 | 200/8 | 700/28 | 75/3 | 700/28 | 800 - 250 | 40/960 |

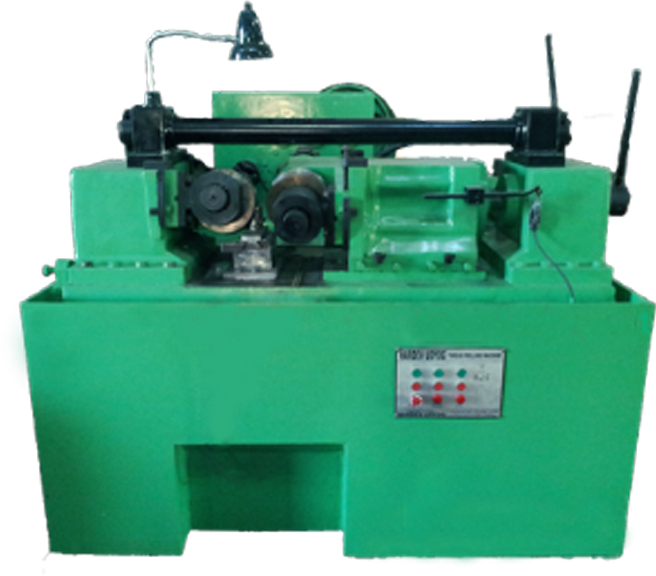

Hydraulic Thread Rolling Machines (Two Roll Type)
Powerful Construction Permits deep forming of threads, Worms, Serrations, Knurls, Rigidity & Simplicity : grade castes hardened and duly scrapped slide, also the easy adjustment of machines as well as tooling enables an unskilled labourer to operate the machine. Machine is very much suitable for mass production and best surface finishes.
| TWO ROLL TYPE | H-25 | H-40 | H-50 | H-80 | H-100 | H-120 |
|---|---|---|---|---|---|---|
| Max. Pitch Can Be Rolled (In Mm) | 2.5 | 3.5 | 4 | 5 | 5.5 | 8 |
| Max. Dia Can Be Rolled In Feed (In Mm) | 25 | 40 | 50 | 80 | 100 | 120 |
| Max. Dia Can Be Through Feed (In Mm) | 18 | 28 | 35 | 40 | 50 | 70 |
| Max. Rolling Length In Feed (In Mm) | 80 | 100 | 150 | 150 | 150 | 150 |
| Max. Rolling Length Through Feed | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite | Indefinite |
| Max. Outer Dia Thread Rolls (In Mm) | 120 | 180 | 180 | 180 | 200 | 220 |
| Spindle Dia (Bore Dia) (In Mm) | 40 | 54 | 54 | 69.85 | 76.20 | 76.20 |
| Max. Width Thread Rolls (In Mm) | 80 | 100 | 140 | 150 | 150 | 150 |
| Max. Rolling Force | 8 Tons | 12 Tons | 15 Tons | 24 Tons | 30 Tons | 40 Tons |
| Power For Roll Spindles | 3 H.P.1440 RPM | 5 H.P.1440 RPM | 7.5 H.P.1440 RPM | 10 H.P.1440 RPM | 12.5 H.P.1440 RPM | 20 H.P.1440 RPM |
| Power For Hydraulic Pump | 2H.P./3H.P960/1440 RPM | 2H.P./3H.P960/1440 RPM | 5 H.P960/1440 RPM | 5H.P./7.5H.P960/1440 RPM | 5H.P./7.5H.P960/1440 RPM | 7.5 H.P.960/1440 RPM |
| Power For Coolant Pump | 0.1 H.P.3000 RPM | 0.1 H.P.3000 RPM | 0.1 H.P.3000 RPM | 0.1 H.P.3000 RPM | 0.1 H.P.3000 RPM | 0.1 H.P.3000 RPM |
