Description
Our Hydraulic Thread Rolling Machines (Three Roll Type) are designed for the production of various threads, worms, serrations, and knurls through cold forming. These machines offer powerful construction, permitting deep forming of threads, and are suitable for mass production with excellent surface finishes.
Key Features
- Powerful construction for deep forming of threads.
- Suitable for mass production with excellent surface finishes.
- Easy adjustment and operation, enabling unskilled laborers to operate the machine.
- Grade castes hardened and duly scrapped slide for rigidity and simplicity.
Specifications
| Model | Max. Pitch (mm) | Max. Dia (Infeed) (mm) | Max. Dia (Throughfeed) (mm) | Max. Rolling Length Infeed (mm) | Max. Rolling Length Throughfeed | Max. Outer Dia Thread Rolls (mm) | Spindle Dia (mm) | Max. Width Thread Rolls (mm) | Max. Rolling Force (Tons) | Power for Roll Spindle (HP) | Power for Hydraulic Pump (HP) | Power for Coolant Pump (HP) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H-25 | 2.5 | 25 | 18 | 80 | Indefinite | 120 | 40 | 80 | 8 | 3 | 2/3 | 0.1 |
| H-40 | 3.5 | 40 | 28 | 100 | Indefinite | 180 | 54 | 100 | 12 | 5 | 3/5 | 0.1 |
| H-50 | 4 | 50 | 35 | 150 | Indefinite | 180 | 54 | 140 | 15 | 7.5 | 5 | 0.1 |
| H-80 | 5 | 80 | 40 | 150 | Indefinite | 180 | 69.85 | 150 | 24 | 10 | 5/7.5 | 0.1 |
| H-100 | 5.5 | 100 | 50 | 150 | Indefinite | 200 | 76.20 | 150 | 30 | 12.5 | 5/7.5 | 0.1 |
| H-120 | 8 | 120 | 70 | 150 | Indefinite | 220 | 76.20 | 150 | 40 | 20 | 7.5 | 0.1 |

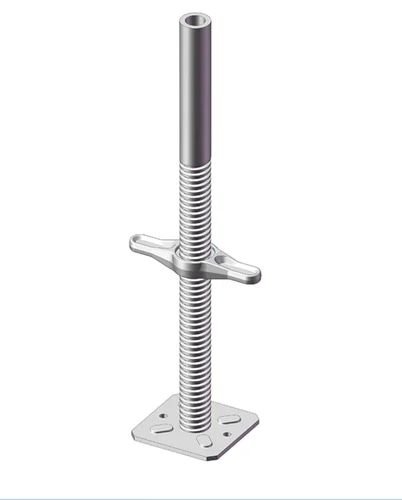

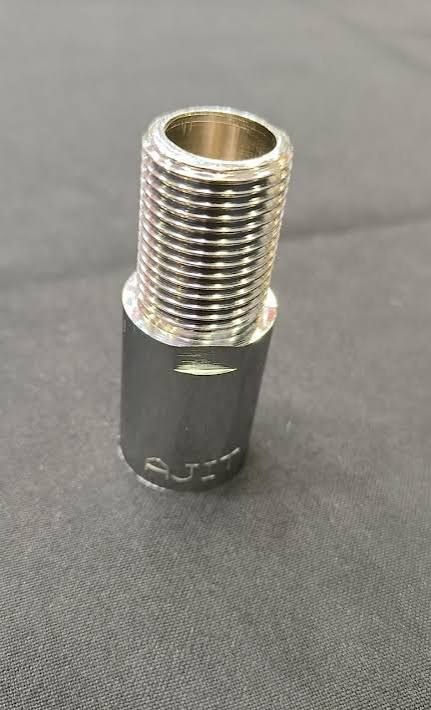

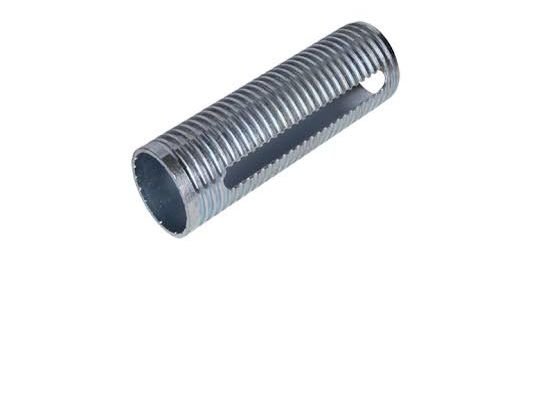

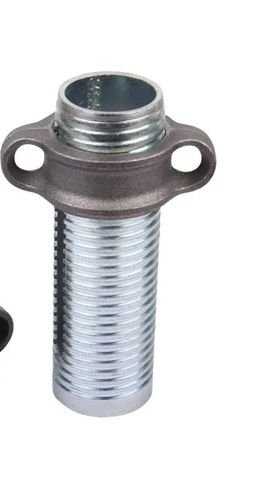

Components
